10.4 inch 1024x768 4:3 600nit IPS LCD Screen and VGA LVDs Controller Board,for Video Games,with Location Holes

LCD Controller Board: VGA 2AV LCD Board Work for LVDS Interface LCD Screen50Pin TTL Connector for 7inch~10.1inch LCD ScreenInput Power Adapter:12Vdc More than 2A,port size: 5.5x2.1mm.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: VGA AV1 AV2Reversing: Support Automatically Switch To AV2 When Connector ACC to 12VOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 91mm x 66mm x 12mm10.4" VS104T-004A 1024X768 LCD Screen:Display Mode IPS Pro, Normally Black, Transmissive Resolution 1024×768Outline Size 220.53 × 168.02×1.03 (H×V×D)Display Area 210.43 × 157.824 (H×V)Brightness 400 cd/m² (Typ.)Contrast Ratio 1000:1 (Typ.) (TM)Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]Interface LVDS (1 ch, 8-bit) , Connector , 30 pinsBacklight WLEDInput Voltage 3.3V (Typ.)Packing list :1× VGA AV LCD Controller Board VS-TY2662-V11×10.4inch VS104T-004A 1024X768 LCD Screen1× 40Pin Cable1× Keyboard With Cablepower supply not including in package ,pls prepare by yourself

• 【Screen Advantages】Outline Size 211.1× 126.5×5.7 (H×V×D)mm，Display Area 198 × 111.7 (H×V)mm,Brightness 450 cd/m² ,Contrast Ratio 500:1,Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC,Backlight WLED,Input Voltage 3.3V
• 【LCD Controller Board】 Work for 1366x768 WLED 40P LVDs LCD Screen,Video input: VGA DVI ,Audio Output: Speaker Connector 8ohm 2W 70x33x15mm 4Pin PH2.0 connection),Power Supply:12V DC more than 2A,port size :5.5x2.1mm (power adapter not included in package ,should be prepared by yourself) .
• 【Capacitive Touch Panel】The design of touch panel makes the operation more convenient, NO button damage issue for after long time use,it support 10 points multi-touch technology allows you to swipe, scroll, select, zoom in, zoom out, and move a cursor in 3-5 ms.,It can also protect the screen from being scratched directly.

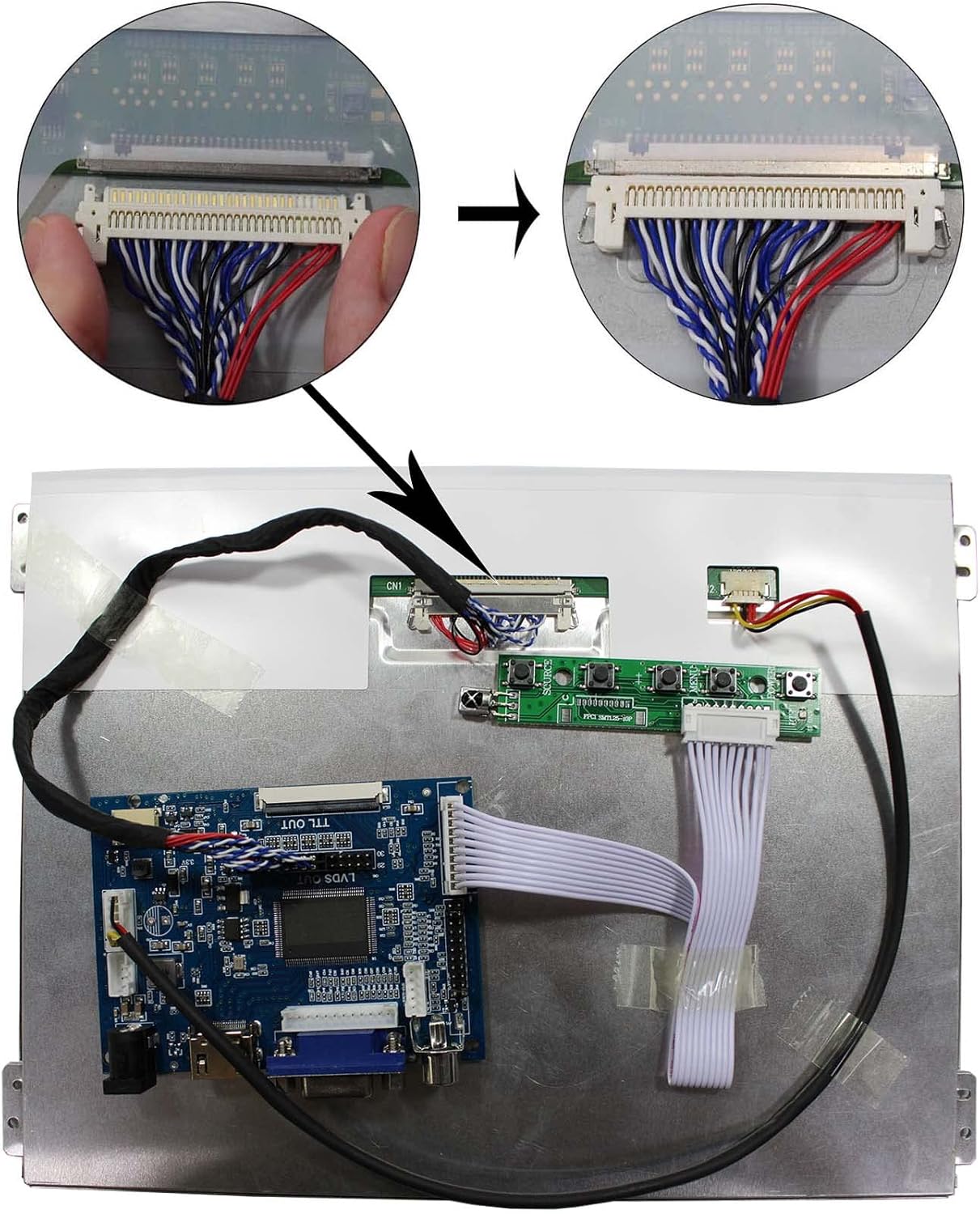

• 【Plug and play】 Touch screen monitor has an impressive feature of plug-and-play that doesn’t require any driver installation. Directly connecting for the cables and ports according to link picture details ,power on ,the LED light on keyboard will be green ,then enter into ,with correct resolution ,the screen can work well .
• 【Packing lists】1× VGA DVI LCD Controller Board68676, 1× 9inch AT090TN10 800X480 LCD With CapacitiveTouch Panel VS090TC01-C1 , 1× USB Controller Card, 1× USB Cable, 1× Keyboard With Cable
